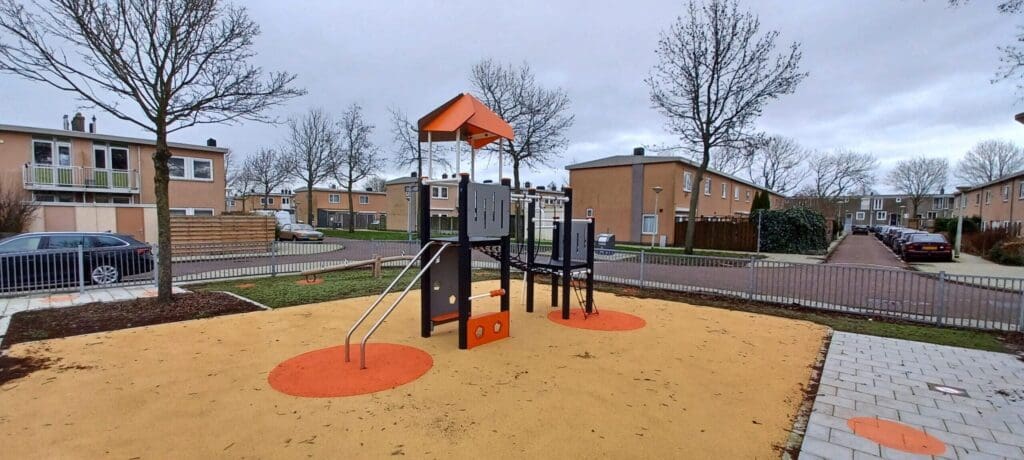

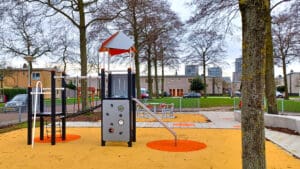

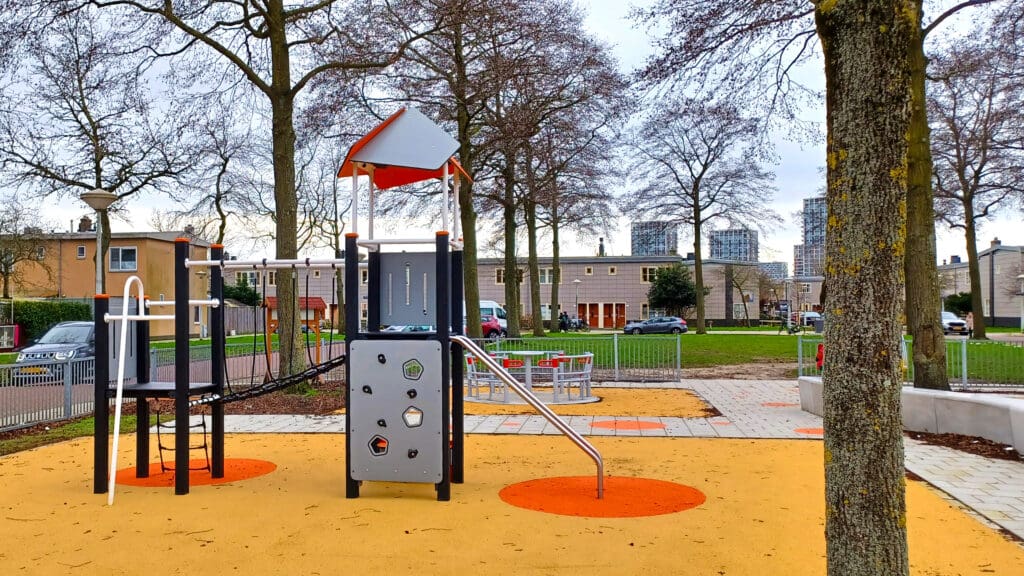

Multi-play equipment Obsidian

BBPE213.6U
MSRP:On requestAssembly price:On request
prices are exclusive of VAT and any assembly and transport costs (FCA Nieuwendijk, NL)
Already In Wishlist In winkelmand
In winkelmand
Product information
Age4 - 12
Base materialRecycled plastic
Play functionsBalancing, Combination equipment, Education, Sliding, Climbing, Role play
Fall height1,5 m
Dimensions4,6 x 1,8 x 3,5 m
Fall zone7,7 x 4,9 m
Obstacle-free zone7,7 x 4,9 m
Placement information
Number of technicians2
Beton0.2 m³
Heaviest part46 kg
Biggest part3.2 x 0.9 x 0.8 m

Fall heightGrass **Pavement
(concrete, asphalt, etc.)
Rubber Cast floorEPDM TilesArtificial grassTiger Mulch®Sand ***Wood chips/ Dekowood ***Bark ***
< 0,6 mjaja *40 mm45 mmT-25TM-50300 mm300 mm300 mm
< 1,0 mjax40 mm45 mmT-25TM-50300 mm300 mm300 mm
< 1,2 mjax40 mm45 mmT-25TM-50300 mm300 mm300 mm
< 1,3 mjax60 mm45 mmT-25TM-50300 mm300 mm300 mm
< 1,5 mjax60 mm45 mmT-35TM-50300 mm300 mm300 mm
< 1,6 mxx60 mm45 mm + 20 mm foamT-35TM-50300 mm300 mm300 mm
< 1,7 mxx80 mm45 mm + 20 mm foamT-35TM-75300 mm300 mm300 mm
< 1,8 mxx80 mm45 mm + 20 mm foamT-45TM-75300 mm300 mm300 mm
< 2,0 mxx80 mm45 mm + 20 mm foam (<1,9 m)T-45TM-75300 mm300 mm300 mm
< 2,1 mxx80 mm45 mm + 45 mm foamT-45TM-95310 mm310 mm310 mm
< 2,2 mxx100 mm45 mm + 45 mm foamT-55TM-95320 mm320 mm320 mm
< 2,4 mxx100 mm45 mm + 45 mm foamT-55TM-95340 mm340 mm340 mm
< 2,7 mxx120 mm45 mm + 45 mm foamT-70TM-95370 mm370 mm370 mm
< 2,8 mxx140 mm45 mm + 45 mm foamT-90x380 mm380 mm380 mm
< 3,0 mxx140 mmxT-90x400 mm400 mm400 mm

* If there is a forced movement, a hard surface is excluded and fall damping is necessary for at least 1.0 m fall height. Spring elements are not allowed on pavement.
** Provided the surface is free of pebbles and debris.
*** Provided of sufficiently equal grain size.
